We offer more than 5000 types of Cylinders Liners and Sleeves

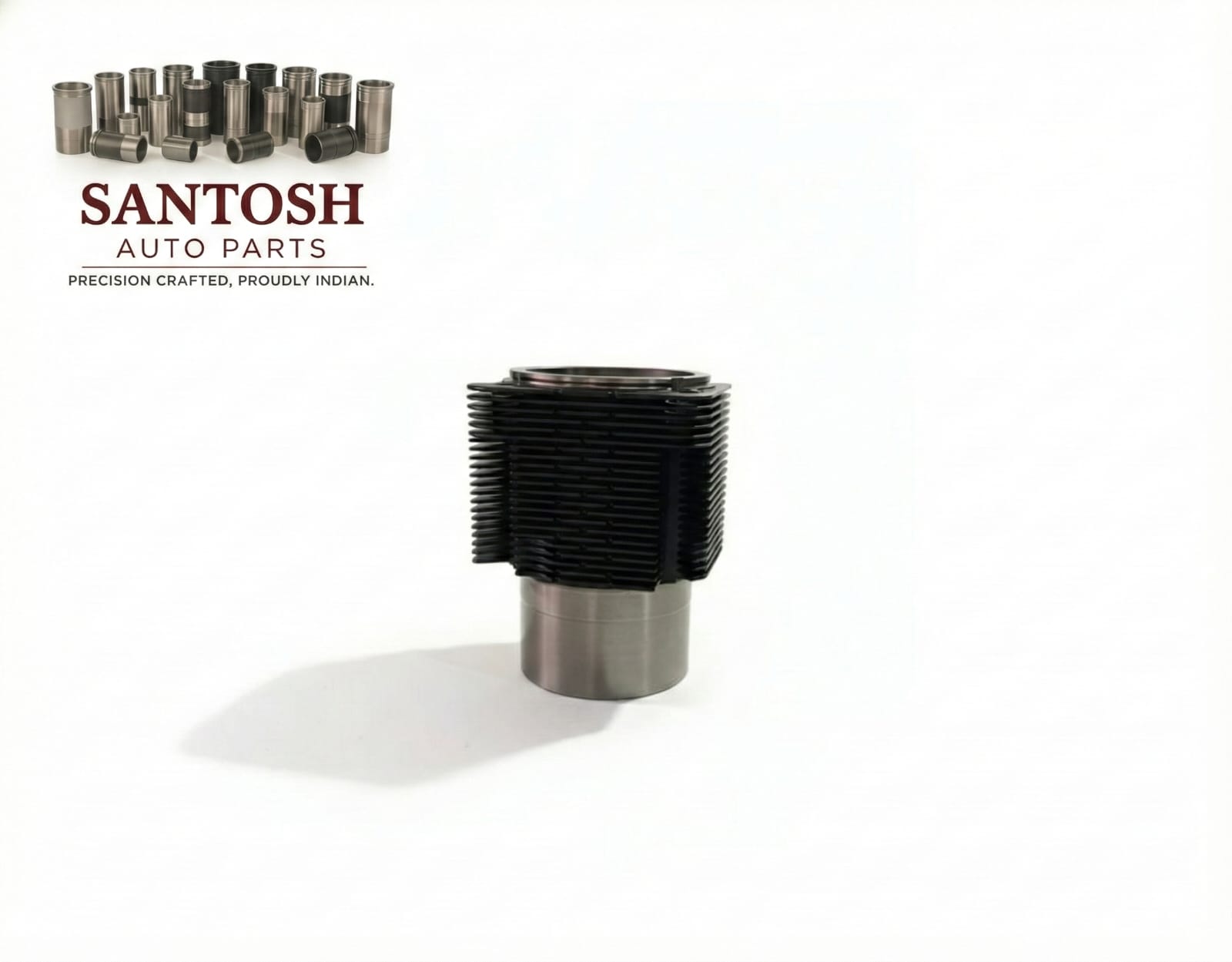

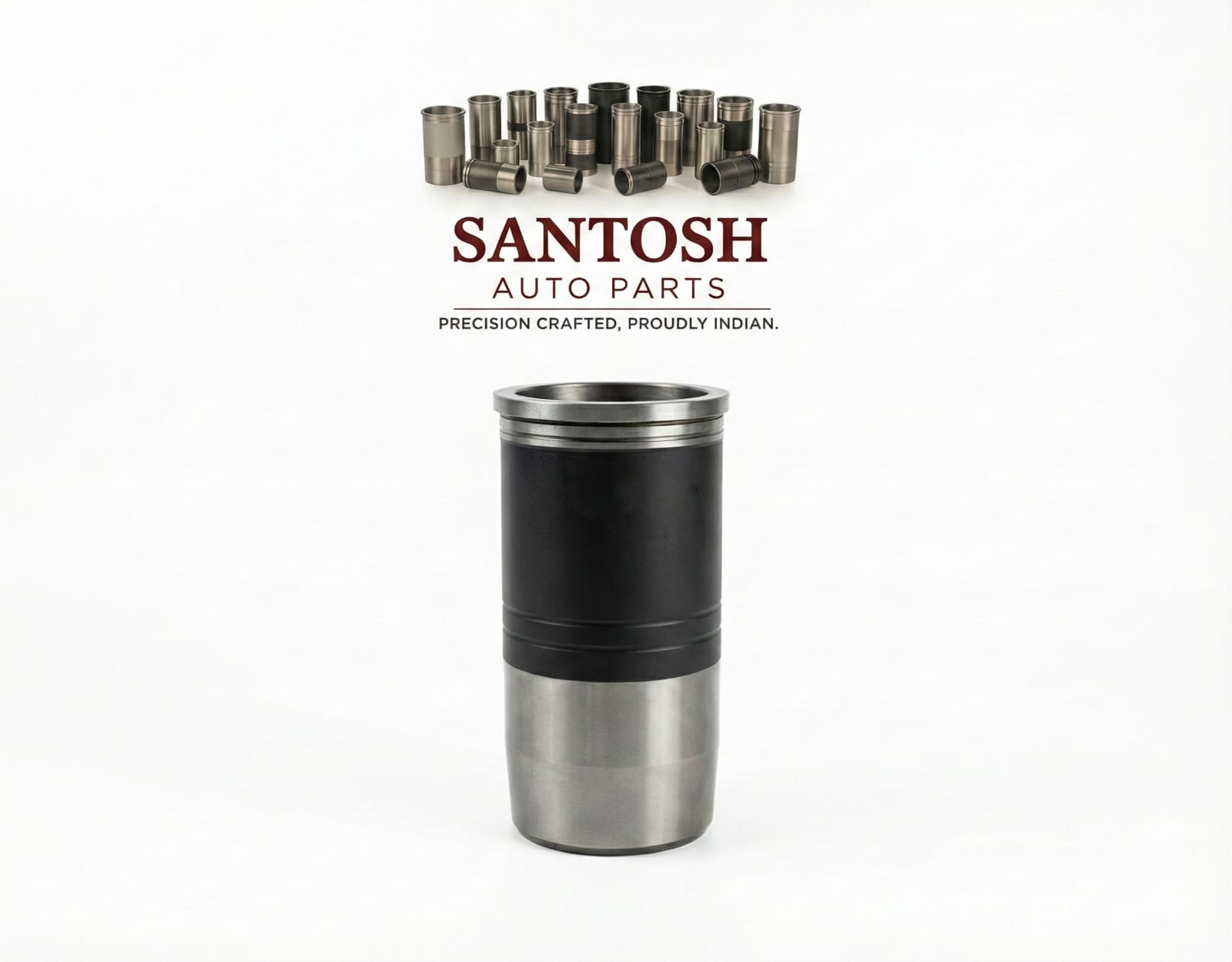

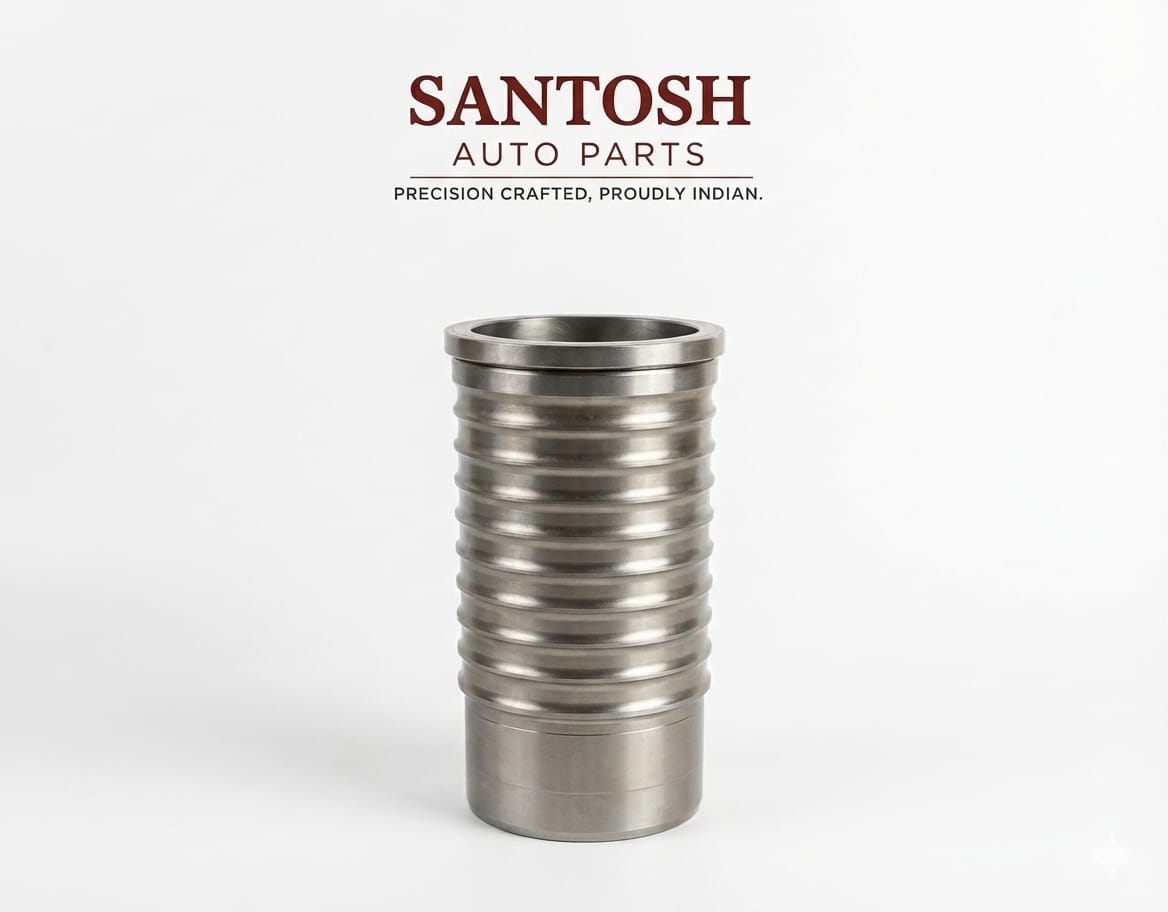

Cylinder Liners & Sleeves

We specialize in the precision manufacturing of high-performance Cylinder Liners and Sleeves designed to support a wide range of engine applications. Our portfolio includes 5000+ engine-specific models, covering both Wet and Dry liner configurations. With wall thickness options from 1 mm to 60 mm and lengths ranging between 125 mm and 370 mm, we meet diverse technical requirements with accuracy. Our capabilities include high-volume casting, semi-finished, and fully finished liners, supplied to both domestic and international markets. Custom-engineered solutions are also available to meet precise customer specifications.

  • Specifications
Product Specifications
Dimension Range (in mm)
Bore dia. 60 to 300
Total length 100 to 500
Technical Specifications
Micro Structure
Graphite type "A" & "B" ("D" & "E" Random)
Flake size 4-7 Microns
Free ferrite Less Than 5%
Matrix Lamellar Pearlite
Chemical composition Minimum Maximum
Carbon 2.90 3.50
Silicon 1.80 2.50
Manganese 0.60 1.00
Phosphorus 0.20 0.50
Chromium 0.20 0.50
Sulphur 0.00 0.12
Moly As Required
Copper As Required
Nickel As Required
Boron As Required
Vanadium As Required
Hardness (BHN) 210 to 280
Tensile 210 to 275 n/mm2
Production Capacity 150000+ pieces per month
Finishes Semi-finished & fully-finished
